8 Cell Wicking Garden Bed DIY Kit (1700mm x 900mm)

8 Cell Wicking Garden Bed DIY Kit – The Homestead Abundance

Grow more of what you love, with less watering and more time to enjoy your garden.

Create a productive backyard vegetable garden with the Wattle & Wick 8 Cell Wicking Garden Bed DIY Kit.

Designed for Australian home gardeners who want to grow more fresh food without the constant chore of watering, this clever system combines proven self-watering technology with a custom-built timber garden bed of your own making.

With eight wicking cells and a generous 1700 mm × 900 mm footprint, you’ll have room to grow a diverse range of vegetables, herbs and leafy greens - all in one water-efficient garden bed.

Whether you’re growing fresh ingredients for the kitchen, establishing a productive family vegetable garden or upgrading your backyard, The Homestead Abundance makes growing your own food easier, smarter and more rewarding.

Less watering. More growing.

Traditional garden beds lose moisture through evaporation and drainage. A wicking bed works differently.

Water is stored in a lined reservoir beneath the growing area, where the wicking system draws moisture upwards into the soil as your plants need it. This helps maintain more consistent moisture around the roots while reducing water lost from surface watering.

The result? A smarter way to grow fresh food, with less frequent watering and more time to enjoy the harvest.

Why you’ll love the Wattle & Wick 8 Cell Kit:

Grow more in one bed: Eight wicking cells provide a generous growing area for vegetables, herbs and seasonal favourites.

Water more efficiently: Deliver moisture from below to help reduce evaporation and unnecessary water use.

Spend less time watering: The built-in reservoir holds 140L of water and can extend the time between watering, depending on weather, plant needs and growing conditions.

Create your garden your way: Build your own timber raised bed to suit your backyard, courtyard or growing space.

Choose your ideal height: Available in 400 mm or 600 mm configurations to suit your garden and preferred working height.

Built for Australian gardens: Durable, powder-coated galvanised steel corner brackets provide a neat, sturdy finish for your timber frame.

Everything you need for the wicking system

Your kit includes the essential components to create the self-watering system inside your timber garden bed.

Included in your kit:

• 1 set of 4 powder-coated galvanised steel corner brackets
• 1 bottom pond liner
• 1 top pond liner strip

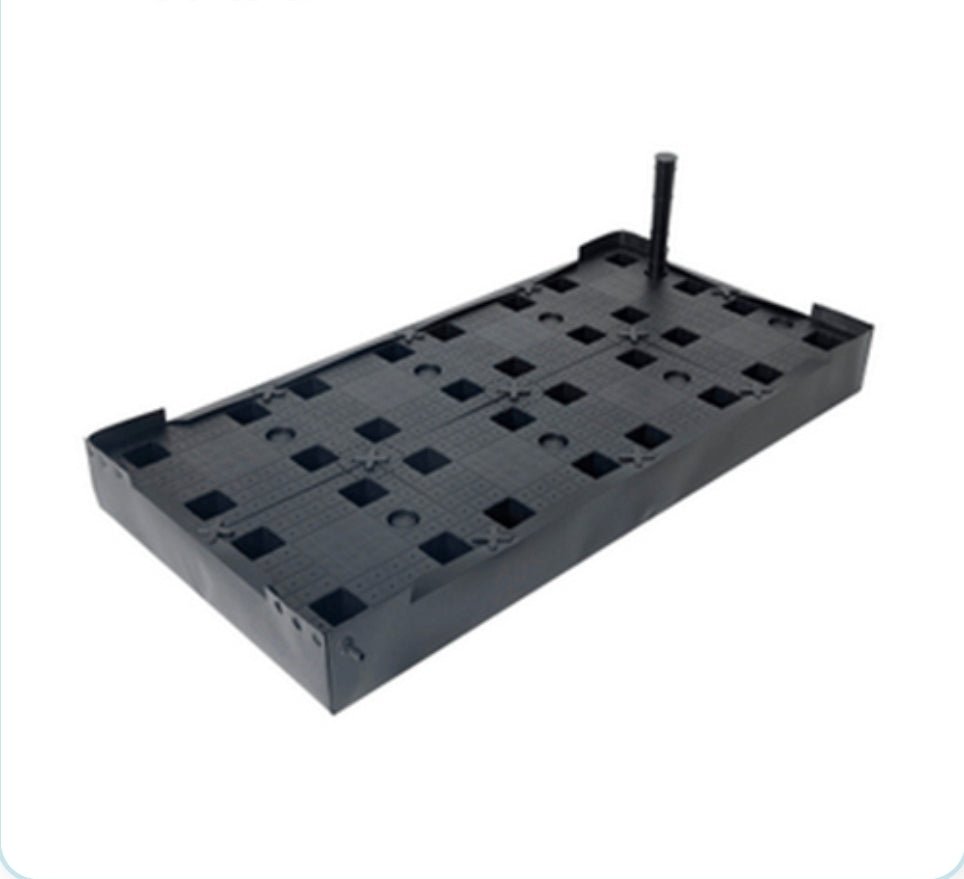

• 8 wicking cells
• 1 water inlet pipe
• 1 overflow pipe
• 20 L of perlite

The modular design makes it possible to create a productive wicking bed using your own choice of suitable timber sleepers.

Choose your garden bed height

Both configurations have an external footprint of approximately 1700 mm × 900 mm.

400 mm height - Standard

A versatile option for everyday backyard vegetable gardening.

You’ll need:

• 4 timber sleepers, each 2400 × 200 × 50 mm
• Cut 4 lengths to 1600 mm and 4 lengths to 800 mm. Most hardware stores will cut your timber to length for you.

600 mm height - Deep

A deeper, more elevated option for gardeners who prefer a higher working position and additional bed depth.

You’ll need:

• 6 timber sleepers, each 2400 × 200 × 50 mm
• Cut 6 lengths to 1600 mm and 6 lengths to 800 mm. Most hardware stores will cut your timber to length for you.

*Timber sleepers and growing medium are not included. The selected height determines the number of sleepers required.

What else will you need?

To complete your garden bed, you’ll need suitable timber sleepers and quality potting mix or growing medium appropriate for wicking beds. You may also need basic DIY tools and fixings for your chosen construction.

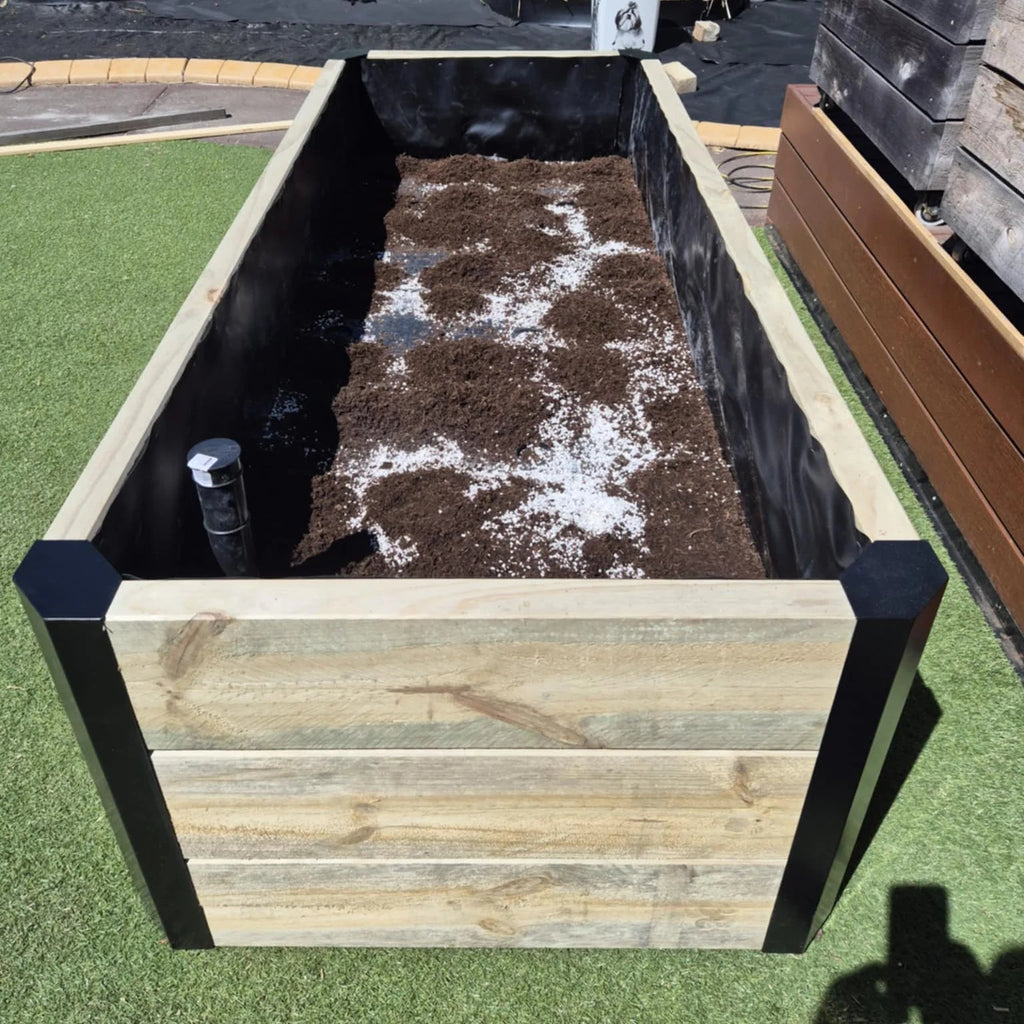

Once assembled, fill your bed with your growing medium, plant your favourite seasonal crops and fill the reservoir through the inlet pipe. The overflow helps prevent excess water from accumulating beyond the intended reservoir level.

Your backyard. Your harvest. Your way.

Imagine picking fresh lettuce for lunch, harvesting herbs straight from the garden and growing seasonal vegetables at home - without having to water your garden every day.

The Wattle & Wick 8 Cell Wicking Garden Bed DIY Kit gives you the components to build a more water-efficient, productive garden that works with your lifestyle.

Build it yourself. Grow more at home. Make every drop count.

Choose your preferred height and start building your Homestead Abundance today.
